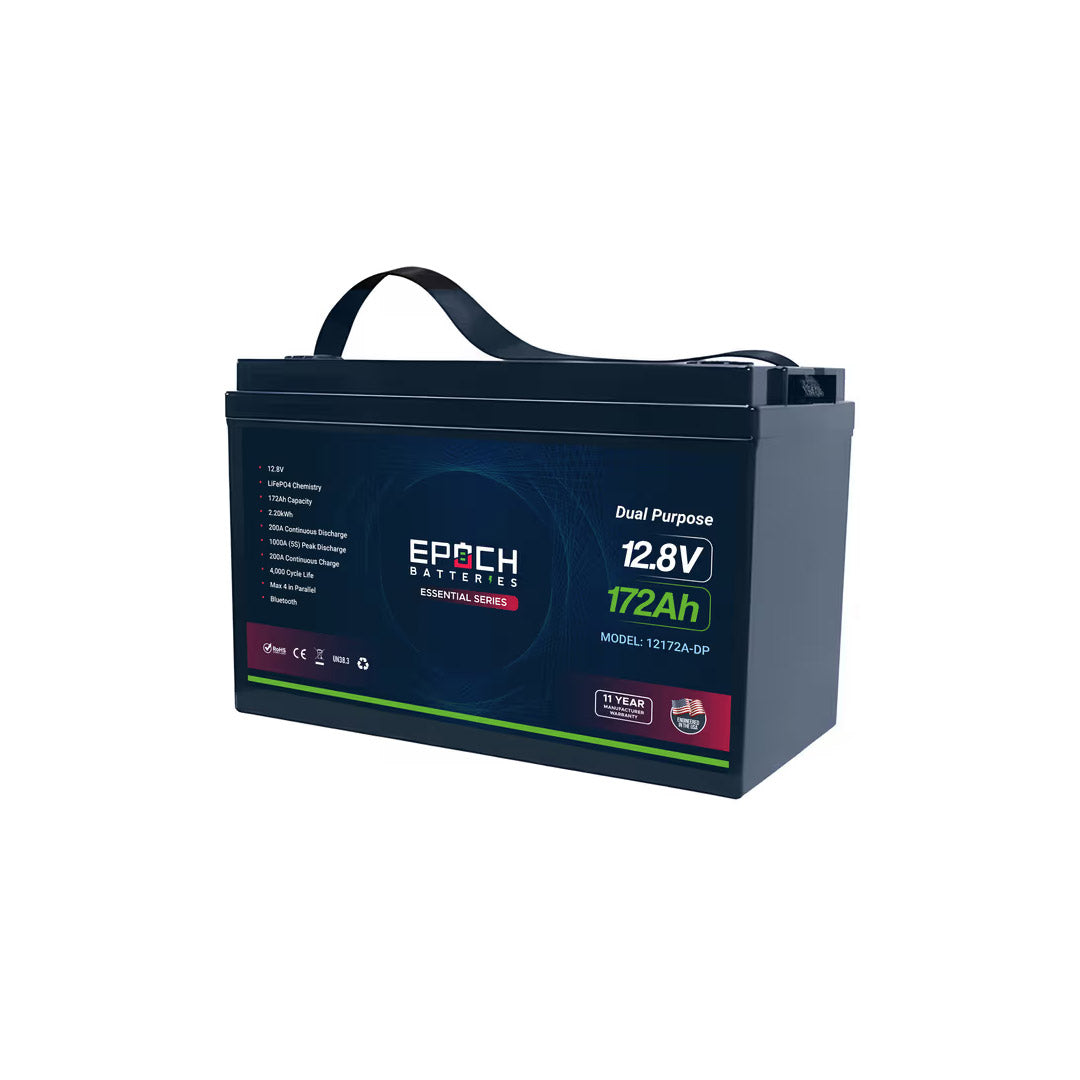

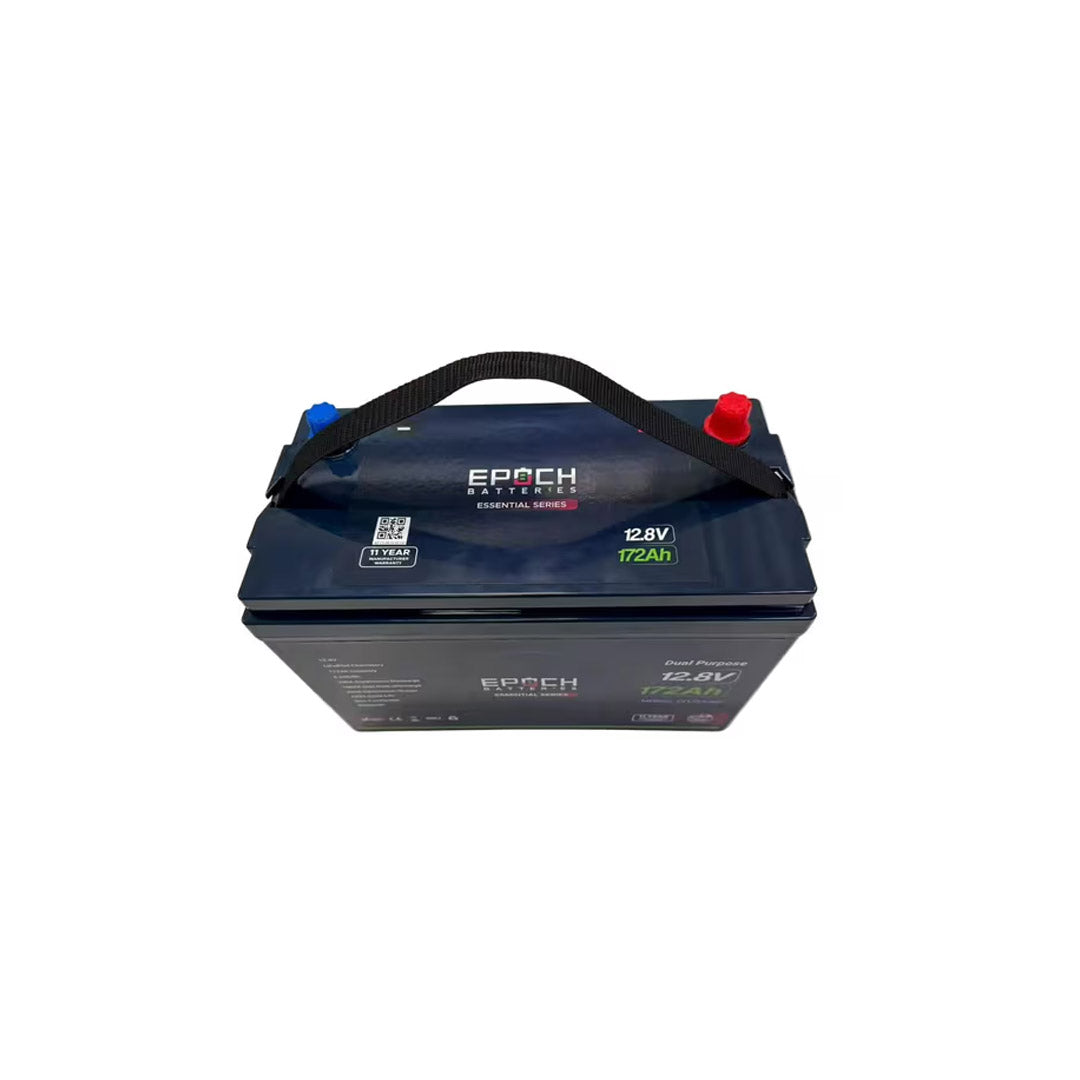

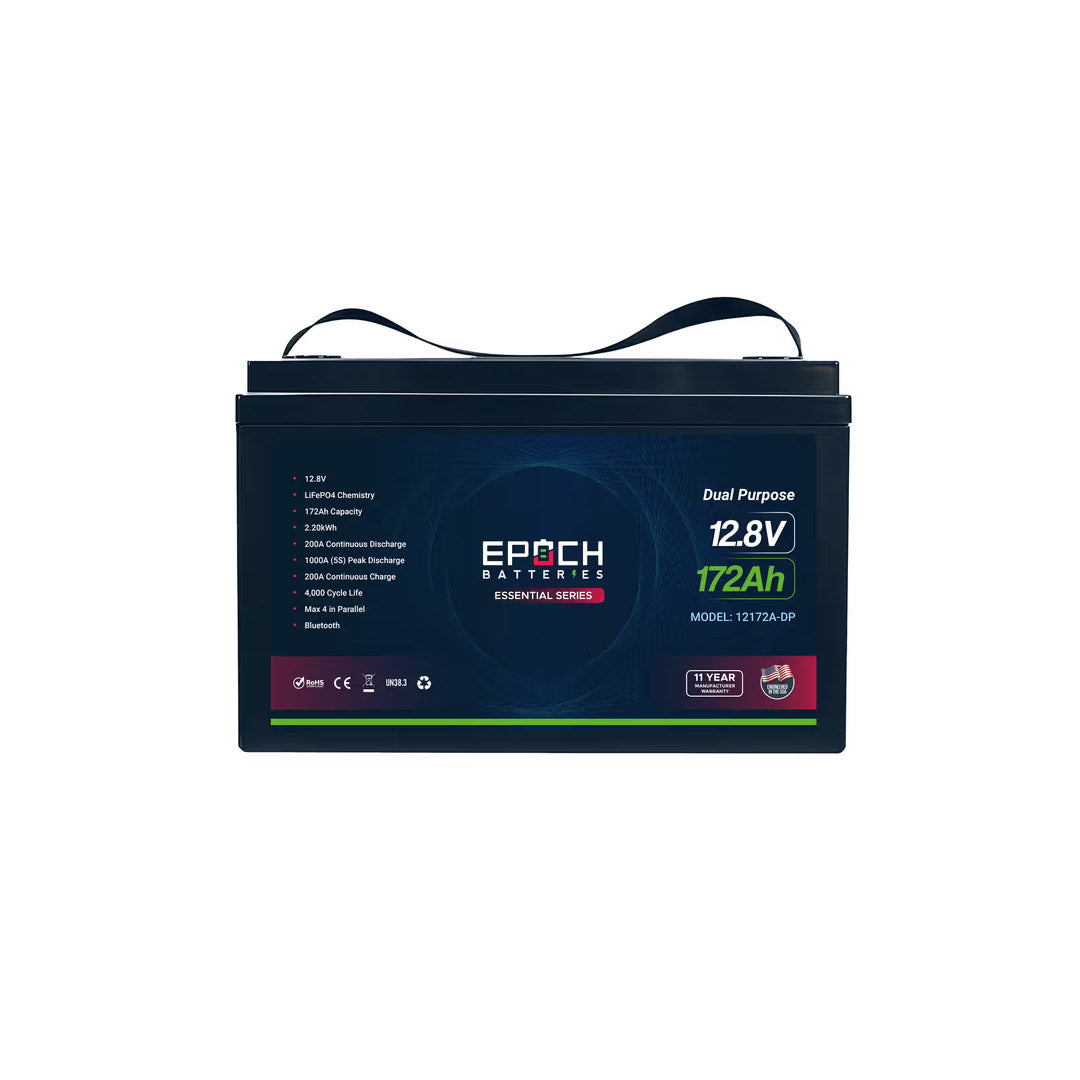

12V 172Ah (2.20kWh) Dual Purpose Essential Series - Group 31 LiFePO4 Battery
1/3
12V 172Ah (2.20kWh) Dual Purpose Essential Series - Group 31 LiFePO4 Battery

12V 172Ah (2.20kWh) Dual Purpose Essential Series - Group 31 LiFePO4 Battery

$799.00

In Stock - FREE SHIPPING
Description
  • LiFePO4 Chemistry
  • Cranking Dual Purpose Battery ~ 1000 CCA ~ Compatible with all outboard motors up to 250hp
  • 1,000A @ 5s - Cranking Capability
  • 200A Max Continuous Discharge
  • BLUETOOTH - iOS and Android Apps
  • IP65 Rated, Dust and WATERPROOF
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Parallel
  • 4,000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty
Specifications

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4

Current
Ah Capacity: 172Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 200A
Max Discharge Peak Current Amps: 1,000A @ 5sSeries | Parallel: Max (4) in Parallel

Voltage
Voltage: 12.8V
Max Charge Voltage: 15.0V
Operating Voltage Range: 10.0V - 14.6V

Temperature
Charge Temp Range: −5°C (23°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight & Dimensions

Weight: 40 lbs
Length: 12.91 (inches)
Width: 6.22 (inches)
Height: 8.46 (inches)
