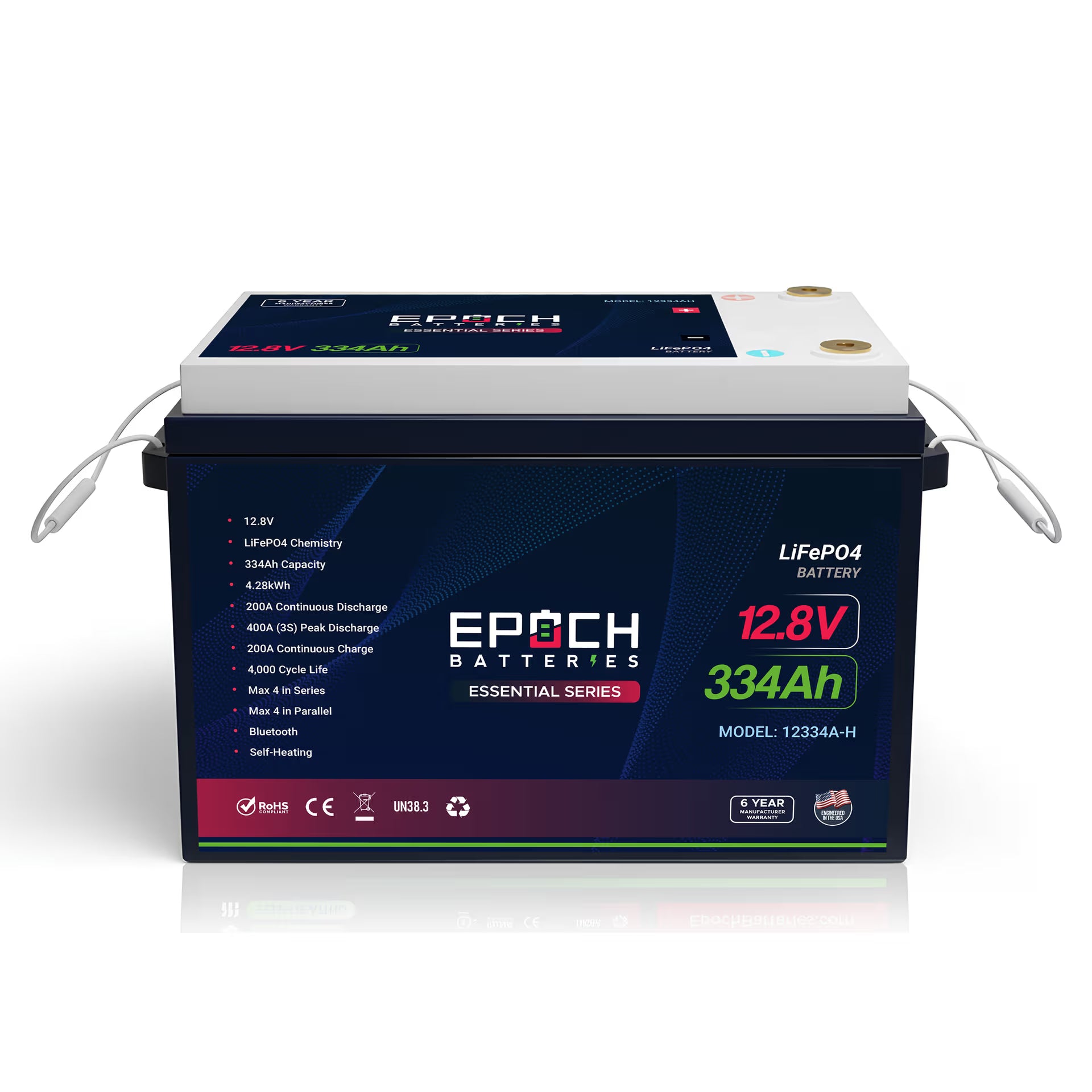

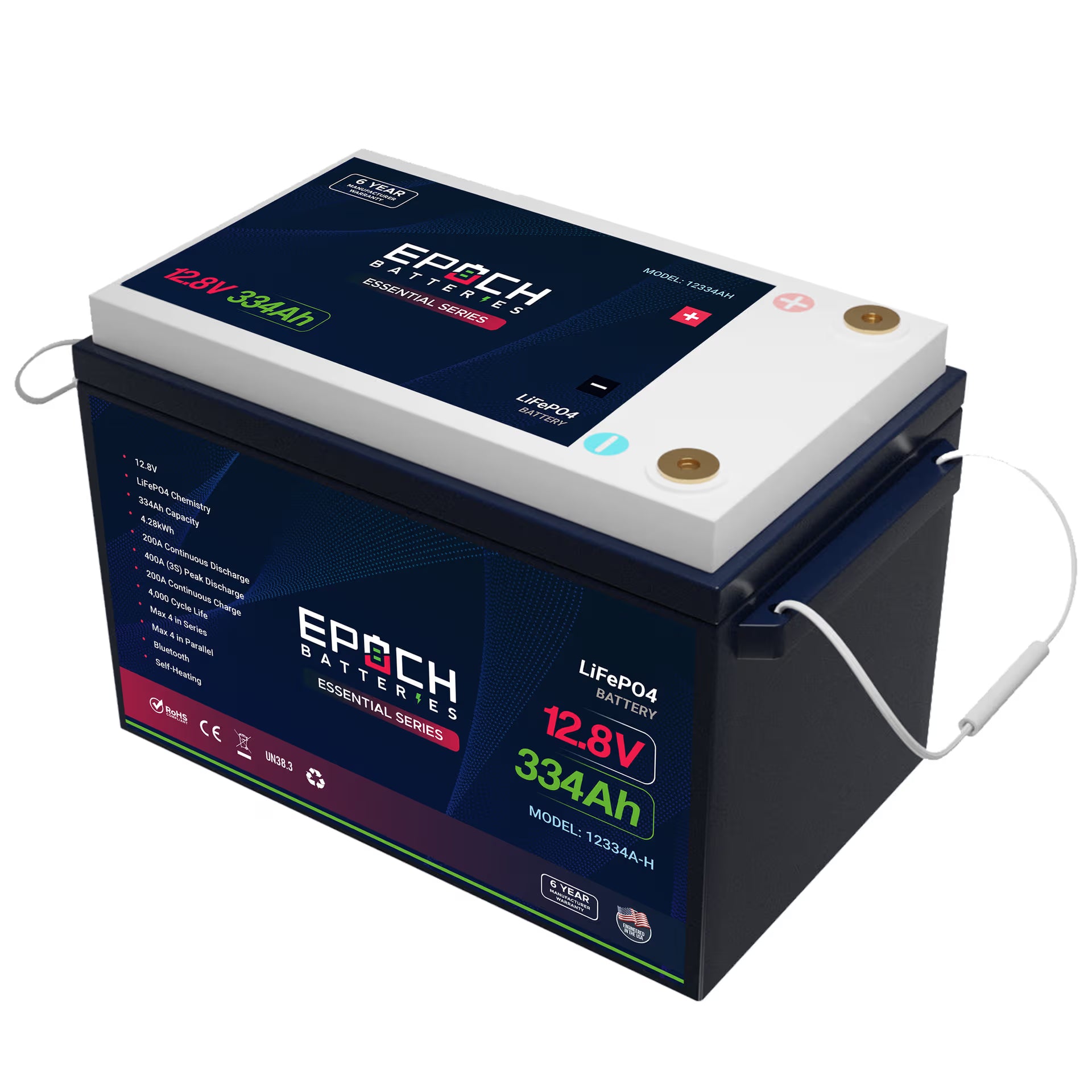

(PRE-ORDER) 12V 334Ah Essential Series LiFePO4 Battery (4.28kWh) - ETA AUG 23
1/2

(PRE-ORDER) 12V 334Ah Essential Series LiFePO4 Battery (4.28kWh) - ETA AUG 23

$1,299.00

In Stock - FREE SHIPPING

Description
  • 12V 334Ah LiFePO4 Battery (4.28kWh): Massive deep-cycle energy storage designed to maximize off-grid runtimes for RVs, camper vans, marine house banks, and heavy-duty solar setups.
  • High-Output Specifications: Effortlessly power large inverters and heavy appliances with a robust 200A Max Continuous Discharge (400A 3s peak), and recharge incredibly fast with a 200A Max Continuous Charge rate.
  • HEATED For Extreme Climates: Built-in internal heating allows for safe, automatic charging even in freezing, sub-zero winter conditions.
  • BLUETOOTH App Connectivity: Monitor real-time state of charge, view capacity, and track cycle history directly from your free iOS or Android device.
  • Massively Expandable: Easily scale your power system exactly as you need it by safely connecting up to Max (4) in Series (to build 24V, 36V, or 48V systems) and up to Max (16) in Parallel.
  • Advanced Smart BMS: Fully integrated Battery Management System automatically protects your investment from over-charging, over-discharging, short circuits, and extreme high/low temperatures.
  • Optimized Weights & Dimensions: Pack a staggering 4.28kWh of usable power into a highly portable footprint, saving incredible weight and physical space compared to wiring together multiple heavy lead-acid blocks.
  • 4,000+ Cycle Life & Maintenance-Free: Enjoy true drop-in, set-and-forget reliability backed by a solid 6-Year Manufacturer Warranty.
Specifications

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4

Current
Ah Capacity: 334Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 200A
Max Discharge Peak Current Amps: 400A (3 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel

Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V

Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight & Dimensions

Weight:60 (LBS)
Length:13.75" @ Base, 15.5" @ Handles(inches)
Width:7.63"(inches)
Height:10.0", 10.5' with Terminal Bolts(inches)

Recommended Charging Settings

Maximum Continuous Charge Current: 200A
Bulk/Absorption: 14.2V-14.4V
Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
Float Voltage: Disabled (preferred) or 13.3V-13.6V
Re-bulk: 13.2V
Temperature Compensation: 0 mV/°C (none)
Equalization: Disabled
Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
BMS High Voltage Cutoff: 14.6V
SoC Recalibration: 14.6V
