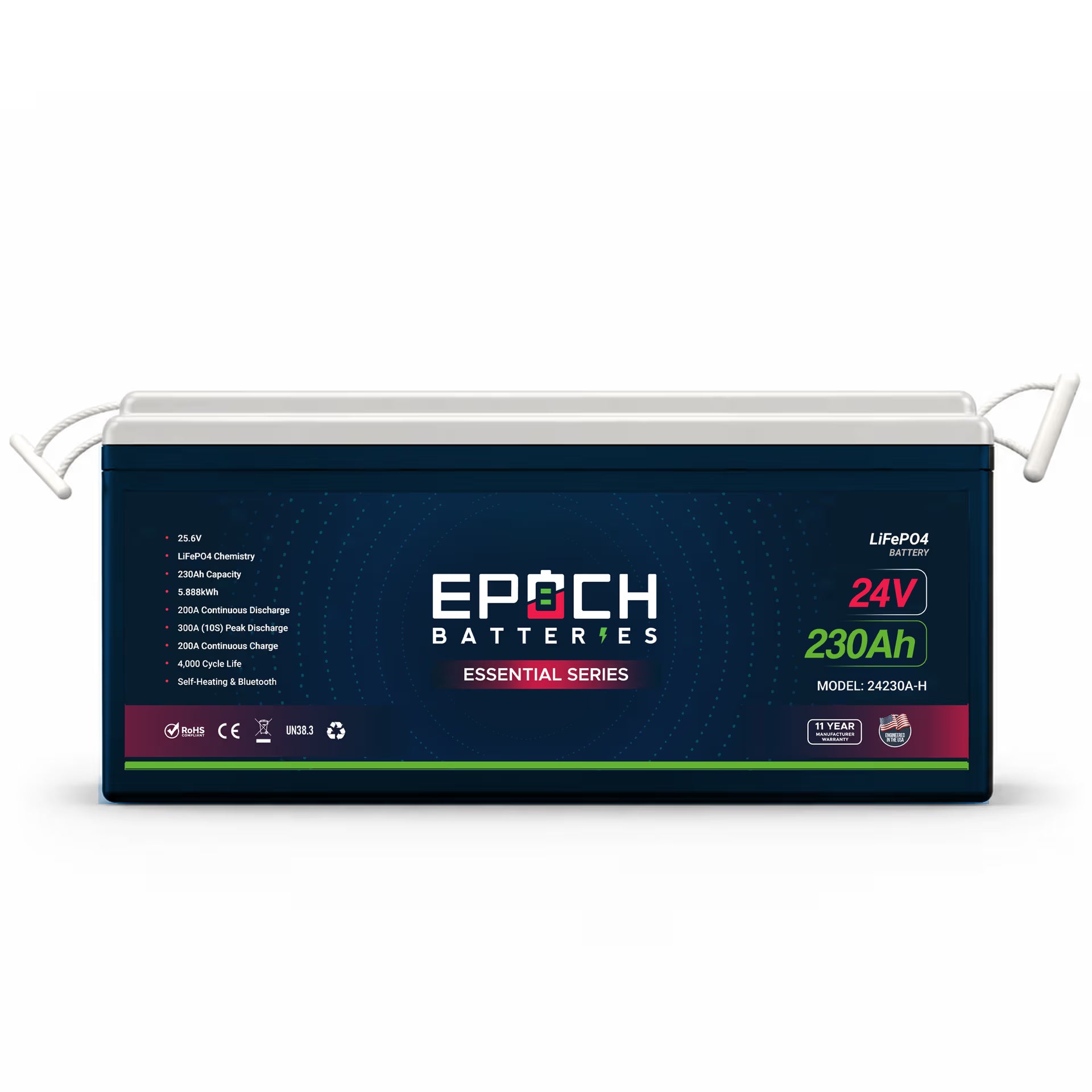

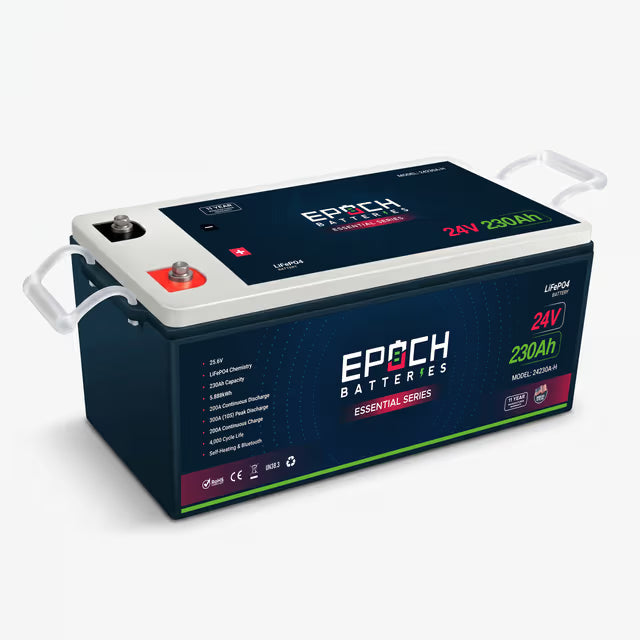

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
1/2

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)

$1,499.00

In Stock - FREE SHIPPING

Description
  • 24V 230Ah Deep Cycle LiFePO4 (5.89kWh): Massive 5.89kWh usable energy capacity, engineered as a premium power solution for heavy-duty 24V marine house banks, large RVs, and off-grid solar systems.
  • High-Performance 230A Output: Delivers a massive 230A maximum continuous discharge—and a 500A peak (for up to 30 seconds)—to effortlessly run large inverters, A/C units, and high-draw equipment.
  • Heated for Sub-Zero Charging: Built-in internal self-heating technology ensures safe and efficient charging even in extreme freezing temperatures (down to -22°F).
  • Smart Bluetooth Monitoring: Connect seamlessly to the free Epoch iOS and Android apps to track real-time capacity, voltage, and overall battery health directly from your smartphone.
  • IP54 Rated: Dust-protected and splash-resistant
  • Advanced Smart BMS Protection: The integrated Battery Management System automatically guards your investment against over-charge, over-discharge, over-current, short circuits, and extreme high/low temperatures.
  • 4,000+ Cycle Life & Maintenance-Free: Exceptional drop-in longevity offering over a decade of reliable daily use with absolutely no watering, acid maintenance, or routine upkeep required.
  • 11-Year Manufacturer Warranty: Backed by an industry-leading warranty to guarantee long-term performance and ultimate peace of mind on the water or off the grid.
Specifications

Configuration
Cell Configuration: 8S1P
Chemistry: LiFePO4

Current
Ah Capacity: 230Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 200A
Max Discharge Peak Current Amps: 300A (10 Seconds)

Voltage
Voltage: 25.6V
Max Charge Voltage: 29.2V
Operating Voltage Range: 20.0 - 29.2V

Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight & Dimensions

Weight: 84 (LBS)
Length: 20.55 (inches)
Width: 9.45 (inches)
Height: 8.60 (inches)

Recommended Charging Settings

Maximum Continuous Charge Current: 100A

Bulk/Absorption: 28.4V-28.8V

Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max

Float Voltage: Disabled (preferred) or 26.6V-27.2V

Re-bulk: 26.4V

Temperature Compensation: 0 mV/°C (none)

Equalization: Disabled

Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)

BMS High Voltage Cutoff: 29.2V

SoC Recalibration: 29.2V
