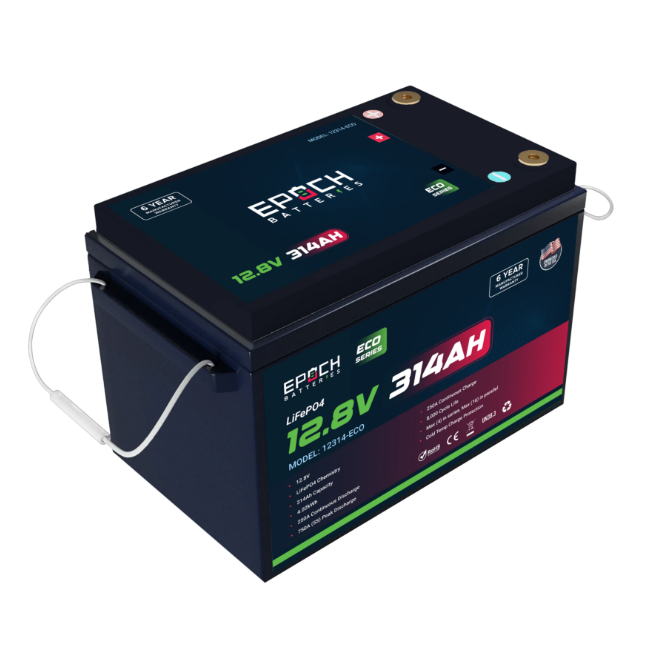

Epoch Batteries 12V 314Ah Eco Series LiFePO4 Battery
1/2
Epoch Batteries 12V 314Ah Eco Series LiFePO4 Battery

Epoch Batteries 12V 314Ah Eco Series LiFePO4 Battery

$699.00

In Stock - FREE SHIPPING
Description
  • LiFePO4 Chemistry - Deep Cycle Battery
  • L15.5" x W7.63" x H10.5"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 64.3 kWh
  • 8,000+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty
Specifications

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4

Current
Ah Capacity: 314Ah
Max Continuous Discharge Amps: 250A
Max Charge Current Amps: 250A
Max Discharge Peak Current Amps: 750A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel

Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V

Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight & Dimensions

Weight
57 (LBS)

Dimensions
Length: 13.75" @ Base, 15.5" @ Handles (inches)
Width: 7.63" (inches)
Height: 10.0", 10.5' with Terminal Bolts (inches)
