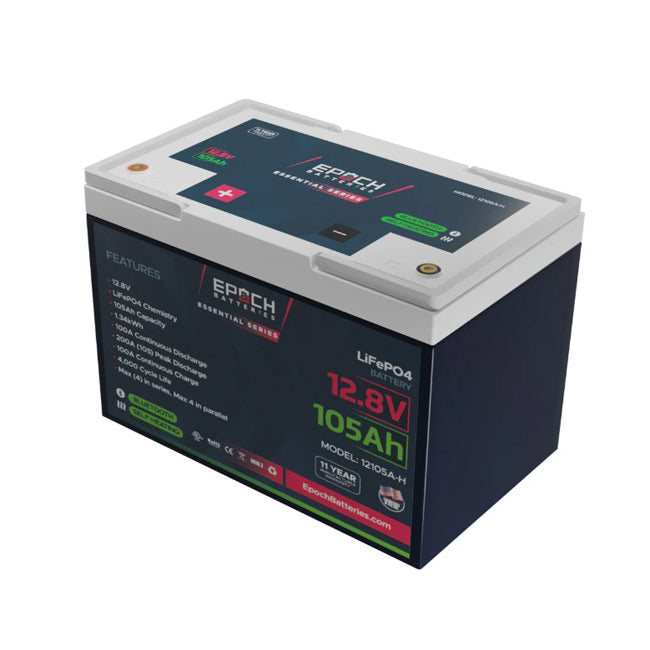

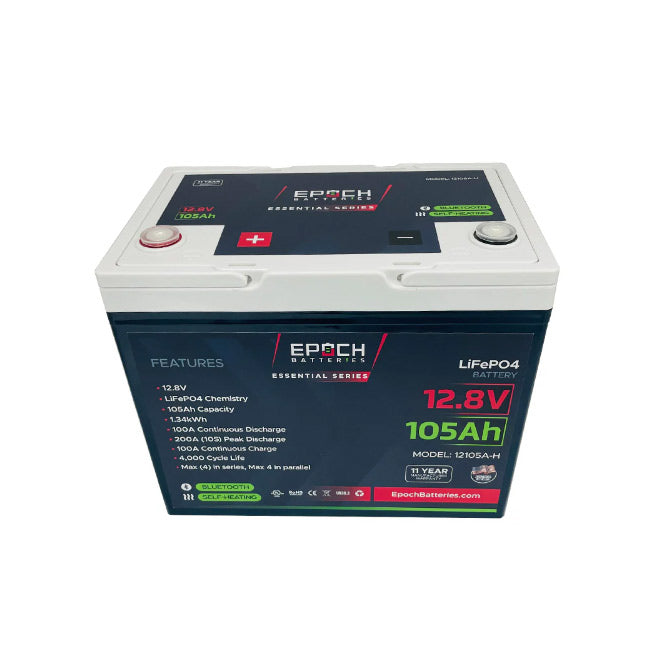

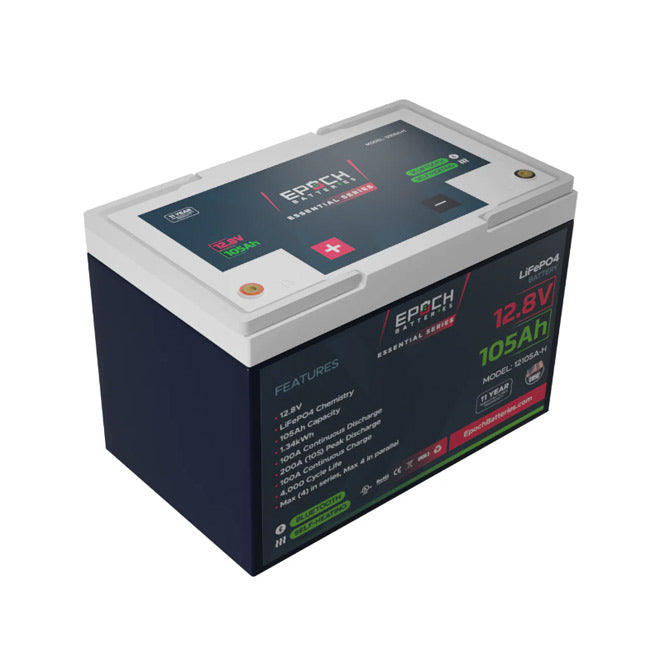

Epoch Batteries 12V 105Ah Essential Series - Group 24 - Heated & Bluetooth LiFePO4 Battery
1/3
Epoch Batteries 12V 105Ah Essential Series - Group 24 - Heated & Bluetooth LiFePO4 Battery

Epoch Batteries 12V 105Ah Essential Series - Group 24 - Heated & Bluetooth LiFePO4 Battery

$499.00

In Stock - FREE SHIPPING
Description
  • LiFePO4 Chemistry - Deep Cycle Battery
  • HEATED - Internal heating allows for charging in sub-zero conditions
  • BLUETOOTH - iOS and Android Apps
  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (4) in Parallel up to 420Ah
  • 4,000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty
Specifications

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4

Current
Ah Capacity: 105Ah
Max Continuous Discharge Amps: 105A
Max Charge Current Amps: 100A
Max Discharge Peak Current Amps: 200A (10 Seconds)
Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P

Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V

Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight & Dimensions

Weight
Weight: 22.1 (LBS)

Dimensions
Length: 10.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)
