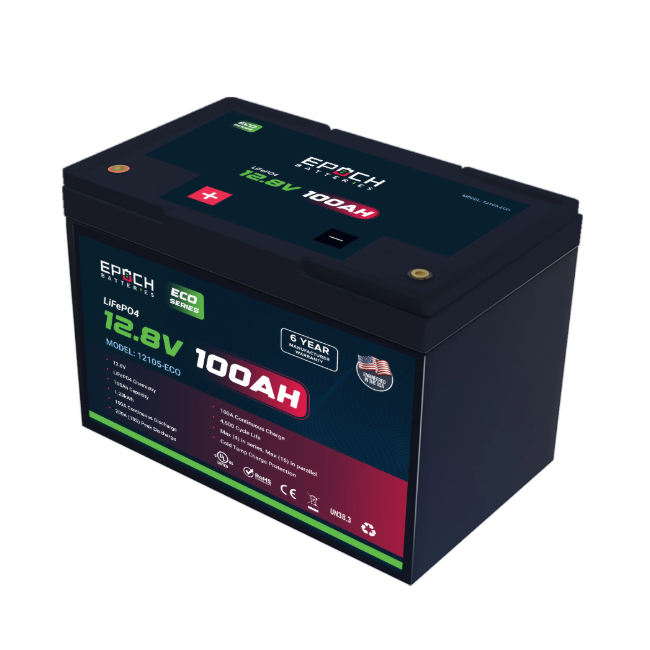

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery
1/2
Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery

$269.00

Available 14 September - Contact us to Pre-Order
Description
  • LiFePO4 Chemistry - Deep Cycle Battery
  • Group 24: L10.25" x W6.75" x H9.00"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 20.48 kWh
  • 4,500+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty
Specifications

Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4

Current
Ah Capacity: 100
Max Continuous Discharge Amps: 100A
Max Charge Current Amps: 100A
Max Discharge Peak Current Amps: 300A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel

Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V

Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Weight & Dimensions

Weight
21(LBS)

Dimensions
Length: 10.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)
Recommended Charging Settings

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

  • Bulk/Absorption: 14.2V – 14.6V
  • Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
  • Float: 13.4V – 13.8V
  • Equalization: 14.4V/ Disabled
  • Temperature Compensation: 0/Disabled
  • Charge Rate: 50% of the battery or battery bank capacity
  • Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
  • Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
  • Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
