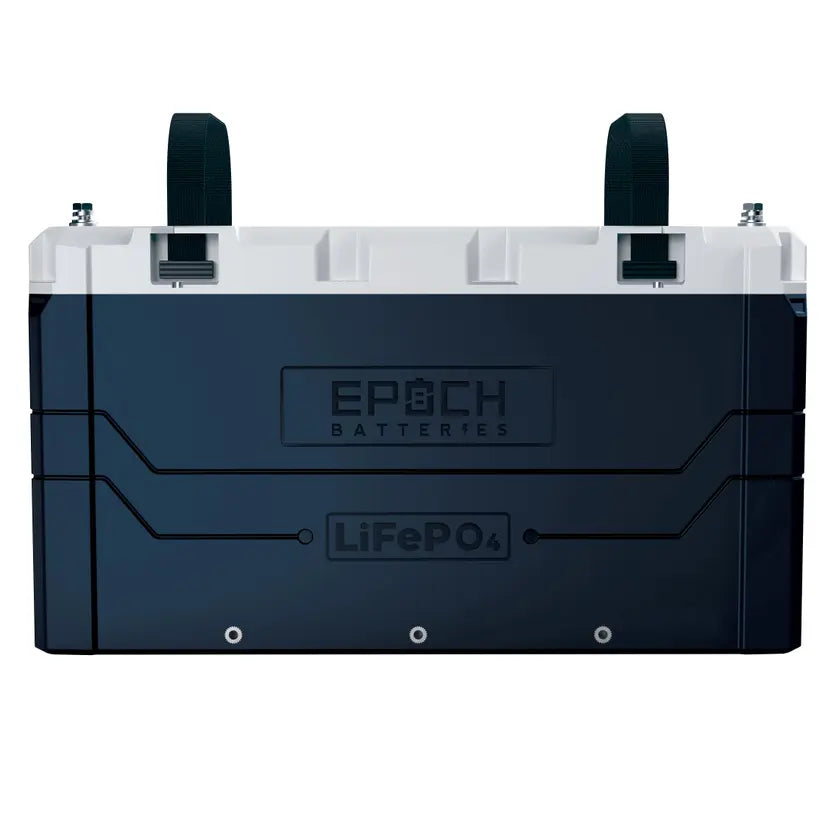

Epoch Batteries 12V 460Ah V2 Elite Series LFP battery with Victron comms Bluetooth & Heating

Epoch Batteries 12V 460Ah V2 Elite Series LFP battery with Victron comms Bluetooth & Heating

$2,199.00

In Stock - FREE SHIPPING

Description
  • LiFePO4 Chemistry
  • UL60691 Certified Internal Fuse
  • UL1642, UL1973, U9540A Certified Cells
  • IEC 62619:2017, RoHS, CE Certified Cells
  • Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
  • 460Ah Capacity
  • 230A Max Continuous Discharge (500A 30s Discharge)
  • 230A Max Continuous Charge (400A 5s Charge)
  • IP67 Rated, Dust and WATERPROOF
  • HEATED - Internal heating for below 0C charging
  • BLUETOOTH - iOS and Android Apps
  • VICTRON Communications - Parallel up to 16 together on 1 system
  • External Power Button & Battery Gauge INCLUDED
  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • 3500+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty
Specifications

Configuration
Cell Configuration:4S2P
Chemistry:LiFePO4

Current
Ah Capacity:460Ah
Max Continuous Discharge Amps:230A
Max Charge Current Amps:230A
Max Discharge Peak Current Amps:500A (30 Seconds) , 1300A (1 Second)
Series | Parallel:Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

Voltage
Voltage:12.8V
Max Charge Voltage:14.6V
Operating Voltage Range:10.0 - 14.6V

Temperature
Charge Temp Range:-20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range:-20°C (-4°F) / 60°C (140°F)
Storage Temp:0°C (32°F) / 35°C (95°F)

Weight & Dimensions

Weight
97(LBS)

Dimensions
Length:20.75(inches)
Width:8.5(inches)
Height:12(inches)
